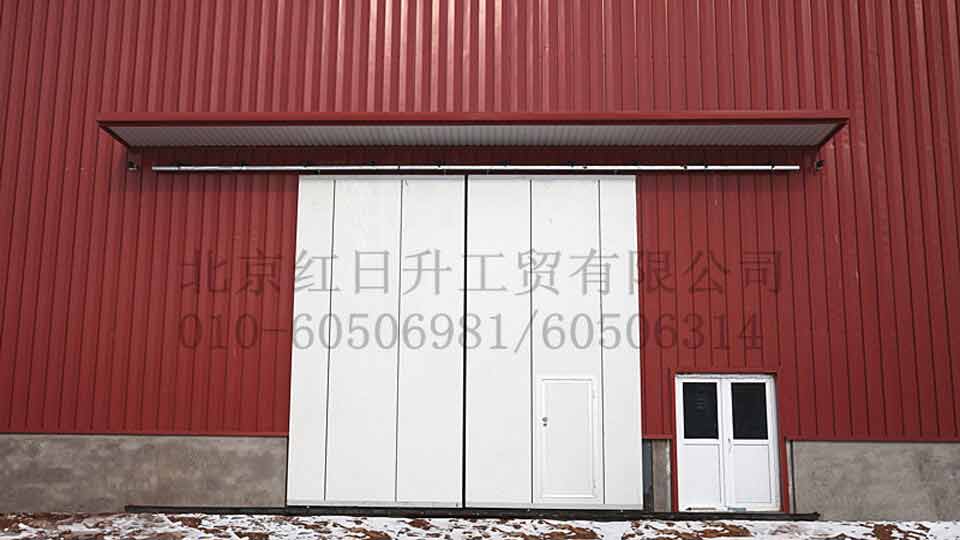

Product Name: New design frameless electric sliding door
Product number: TLD2
Thickness of door plate: 55mm/75mm/100mm
Door material: aluminized zinc color steel plate
Internal filling: polyurethane foam
Steel plate thickness: 0.5mm--0.8mm(commonly 0.6mm)
Surface texture: Mirror
Door style: Mirror
Width of door body: within 12000mm (single block)
Height of door body: within 2380mm (single block)
Technical Feature:
1. Guide rail and motor drive system integration design
2.24v dc motor drive, safe and reliable
3.Automatic memory limit function
4.Prevent clip features
5.The function of manual and electric switch
6.Can connect intelligent open system
7.The position memory function after blackout
8.Compact structure,convenient installation, save installation time
The highlights of the electric sliding door fan: the sliding door panel is made of frameless built-in frame high strength polyurethane sandwich board, which is formed by the integral foaming polyurethane after the interlocking of the steel lining skeleton and the back plate.
The thickness can be 55mm, 75mm, 100mm.
